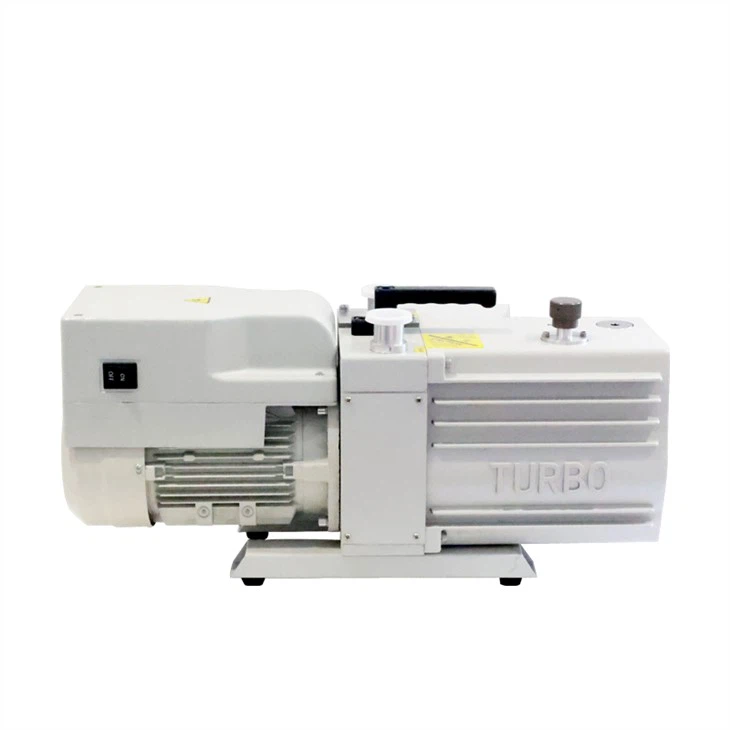

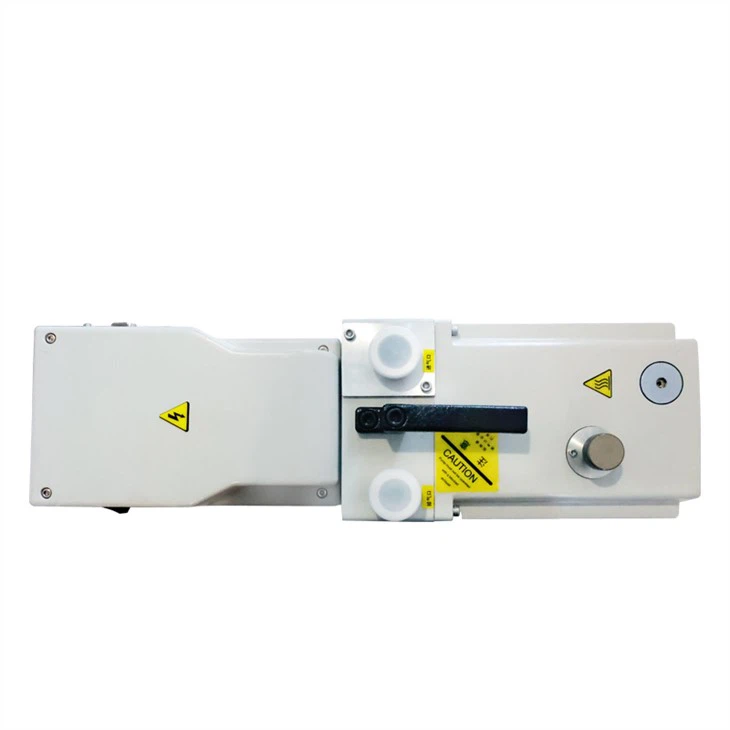

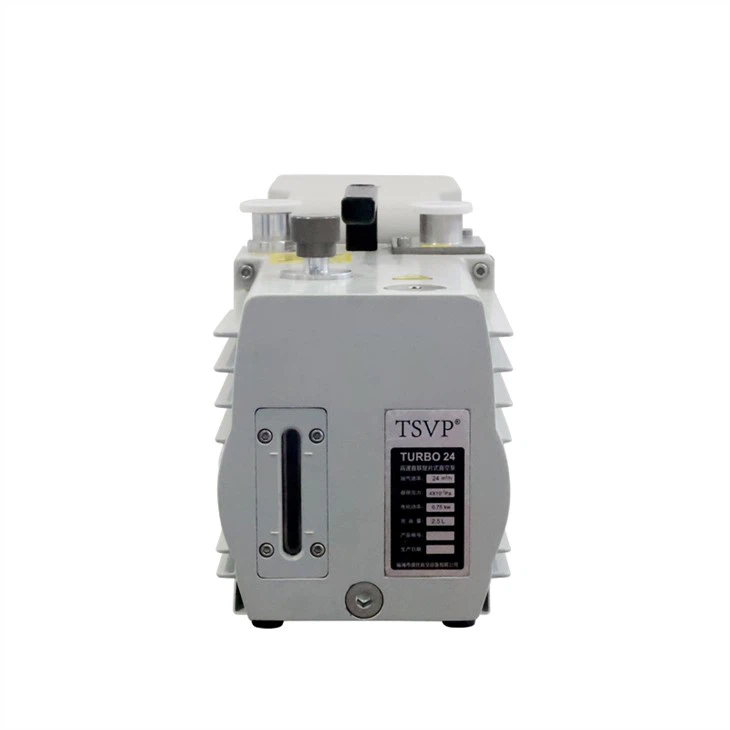

Freeze Dryer Oil Pump

Place of Origin: Zhejiang, China (Mainland)
Brand Name: TSVP
Application: air exhaust of refrigeration equipment,vacuum packing,vacuum forming...
Fuel: vacuum pump oil
Color: White+Black
Packaging Details: Carton or Pallet
Port: Ningbo

Outlet Size:KF25

Oil Capacity(min/max) L:1.5/2 L

Vapour Allowed Pressure:20 Pa

Application:Freeze Dryer



Presentation

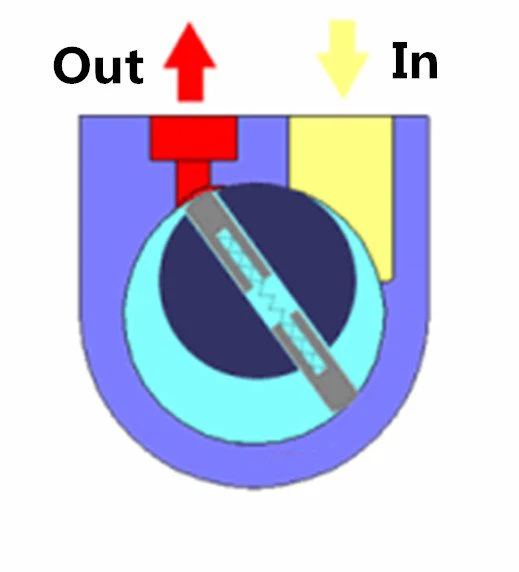

This Freeze Dryer Oil Pump is mechanical vacuum pump, which is widely used in the field of vacuum technology. The gas isinhaled, compressed and exhaled through the operation of rotating blades and eccentric rotors. Simplestructure, high reliability, wide range of pumping speed. T series has excellent gas ballast function, highadaptability with low vibration and low noise, economical and practical.



Product Introduction

This Freeze Dryer Oil Pump is used to pump the air in the sealed container to reach the vacuum state, and can be used alone, or as a pre-stage pump, diffusion pump and molecular pump. It adopts a compact structural design and is equipped with various precision components to effectively improve the efficiency of operation and meet the requirements of various scientific and industrial applications. In addition, its power and capacity can meet a wide range of service applications, provide high CFM level, can quickly and thoroughly vacuum, and help you solve various use problems.



Features

This Freeze Dryer Oil Pump is equipped with high-quality all-copper motor, which can ensure stable use status, and adopts high torque design, easy to start and efficient operation. Its cast aluminum shell makes the pump light in weight and durable at the same time, so it will not easily deform or be thin to wear during use, so it can reduce the number of maintenance. In addition, it adopts a gas ballast design, which has better compatibility with moisture and solvent vapor, and can use a check valve to prevent pump oil backflow for easy cleaning.



Factory advantage

Our manufacturing facility spans over 7,564 square feet, providing a robust foundation for high-volume production. With the capacity to ship over 2,000 units monthly, we ensure timely delivery without compromising on quality. We stand behind our products with a comprehensive 1-year warranty and a portfolio of over 30 patents, reflecting our commitment to innovation. Furthermore, our streamlined processes guarantee a rapid turnaround, with all orders fulfilled within 15 days.



	T8	T16	T24	T30	T40	T60
50Hz Nominal Pumping speed M³/h(L/s)	9/2	17/4	24/6	31/8	42/11	63/17
50Hz Pumping speed M³/h(L/s)	7/2	14/4	21/	28/8	39/11	59/16
Partial Ultimate Pressure without gas ballast (Pa)	5×10-2	5×10-2	5×10-2	5×10-2	4×10-2	4×10-2
Total Ultimate Pressure without gas ballast (Pa)	8×10-1	4×10-1	4×10-1	4×10-1	4×10-1	4×10-1
Total Ultimate Pressure with gas ballast (Pa)	2×10-1	6×10-1	6×10-1	6×10-1	6×10-1	6×10-1
Vapour allowed pressure (Pa)	15	20	20	25	25	25
Vapour pumping ability (g/h)	100	230	230	800	1000	1100
Oil Capacity(min/max) L	0.7/1	1.4/1.8	1.5/1.9	3/4	3/4	4/5
Noise Level(gas ballast close/open)(db a)	56/58	58/60	58/60	58/60	58/60	58/60
Ambient Temperature ℃	12-45	12-45	12-45	12-45	8-45	8-45
Connector	KF25	KF25	KF25	KF25	KF40	KF40
Power Supply	Single/3-ph	Single/3-ph	Single/3-ph	Single/3-ph	Single/3-ph	3-ph
Power Rating(kw)	0.37	0.55	0.75	0.75	1.1	1.5
Dimensions (mm)	520×175×285x220	540x175x285x240	564×175x285x264	584x175x285x284	660x234x350x320	720×234x350x350
Weight(without oil)kg	32	34	36	38	70	75

☆We will quote the price based on the most suitable method for shipping, or you can advice your own forwarder

☆Package is optional

Q: Are you direct manufacturer?
A: Yes, we are direct manufacturer with factory and international department,we manufacture and sell all our products by ourselves since 1986.



Q: How can i know more detail about you product?

A: Welcome to inquire us!



Q: How long can I get the feedback after we sent the inquiry?
A: We will reply you within 12 hours in working day.



Q: How to handle the order?
A: 1. Please inform us of your requirements or application (soas to determine which model you need).
2. We will offer a quote based on your requirements or our suggestions
3.The customer confirms and makes the full payment to complete the formal order.
4. We arrange production and shipment.

Q: How long is the delivery period?
A5: Since we are a factory with a large warehouse, we have sufficient inventory. We can ship within 15-20 working daysafter receiving the full payment (we have regular modelproduct inventory, such as 2ZX-2/4, DVP2pro/4pro... Pleaseconfirm with us if there is any demand).

Q: How is the payment method?
A: Usually, we use wire transfer. Full payment is paid after theorder is signed.

Q: Can my logo be used on the product?
A: Yes, please inform us formally before production and confirm the design according to our samples. If you have your
own brand name, please send it to us.

Q: What colors are available for selection?
A: Color is optional,OQ is 10 sets. Please contact us if youhave any other color requirements.

Q: Are you a factory manufacturer?
A: Yes, we are a factory manufacturer with a factory and an international department. Since 1988, we have self-produced
and sold all products.

Q: How long will it take for us to receive feedback after sendingan inquiry?
A: I will reply to you within 12 hours on working days.

Q: How to solve equipment failure during use?
A: Please send us an email, picture or a short video of the problem. We will find the problem and help you solve it.

Q: Do you provide samples? Are they free?
A: Yes, but considering the high value of our products, samplesare not free.
