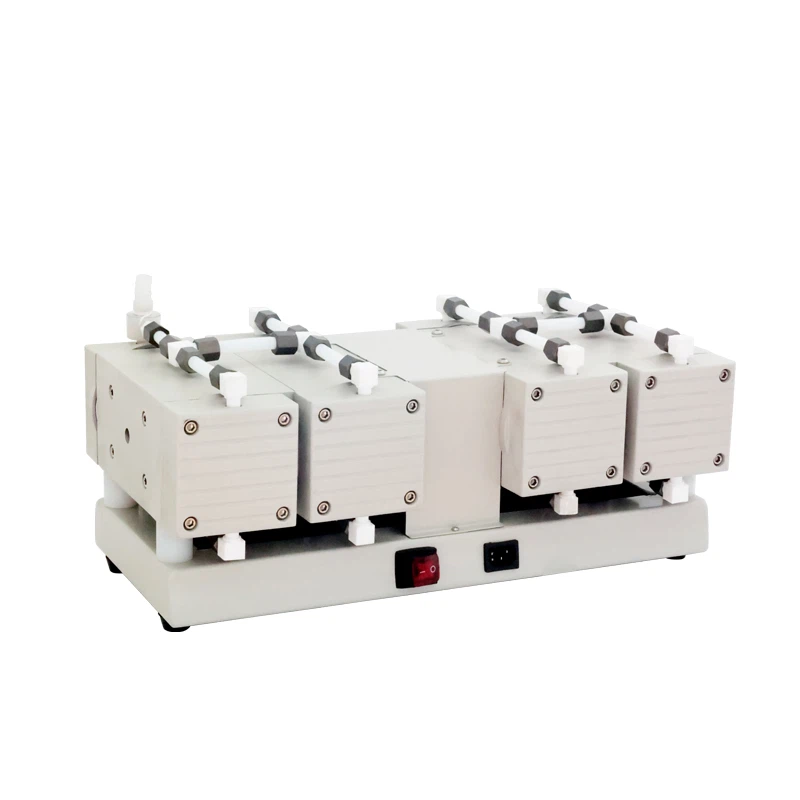

Dvp4D Matching Drying Oven Diaphragm Vacuum Pump PTFE
Motor：0.36KW
Pumping Speed:4 m3/h
Features
1. Low noice, light weight,total weight only 10kgs
2.Convenient maintenance and repair
3.Working constantly for a week
Quick Detail
Packaging Details: Carton or Pallet
Brand Name: TSVP
MOQ:1SET
Delivery Time:15days
Pumping Speed (m3/h):4 or 8
Inlet plate:Carbon Fiber Reinforced PTFE
Safety Function:Motor Automatic Protection
Technical Data
|
Model |
DVP1.2pro |
DVP2pro |
DVP4pro |
DVP2Dpro |
DVP8 |
DVP16 |
DVP4D |
|
Pumping Speed (m3/h) |
1.2 |
2 |
4 |
2 |
8 |
16 |
4 |
|
Ultimate Pressure (mbar) |
≤2 |
≤8 |
≤2 |
≤8 |
≤30 |
≤150 |
≤2 |
|
Frequency Conversion |
Rated at 1400 |
||||||
|
Safety Function |
Motor Anomaly Detection |
||||||
|
Pumping Head |
1 |
1 |
1 |
2 |
1 |
1 |
2 |
|
Power Supply (w) |
80 |
180 |
360 |
360 |
400 |
400 |
600 |
|
Inlet Connector |
10mm |
10mm |
10mm |
10mm |
KF16 |
KF16 |
KF16 |
|
Dimensions (cm) |
24*28*15 |
38*24*17 |
29*24*170 |
50*25*25 |
37*20*31 |
37*20*31 |
51*25*25 |
|
Weight (kg) |
7 |
8 |
10 |
10 |
20 |
20 |
25 |
|
Materials In Contact With Medium |
|||||||
|
Components |
Wetted parts |
||||||
|
Displacing Valve |
FFKM |
||||||
|
Diaphragm |
"Sandwich Configuration" PTFE |
||||||
|
Inlet/outlet |
PTFE |
||||||
|
Fittings |
PTFE,PVDF |
||||||
|
Inlet plate |
Carbon Fiber Reinforced ECTFE |
||||||
|
Cavity/Diaphragm Clamping Disc |
HAIII and Teflon |
||||||
|
Remarks：D means double cavity with single side |
|||||||
Application:
Q:1st,let us know your requirement or application(to decide which model you need).
2nd,we quote according to your requirements or our suggestions.
3rd,customer confirms and places deposit for formal order.
4th,we arrange the production&delivery.
A:What about the lead time?
Q: Since we are a factory with large warehouse, we have abundant products in store, so we can
deliver within 3 working days after get your deposit(we have the stock for the regular model, such as 2ZX-2/4,WX-2/4...please check with us first if any request)
A:How about the payment term?
Q:Usually by T/T,L/C.30%deposit after order,the balance will be paid at the sight of B/L
A:ls it OK to use my logo on product?
Q:Yes,please inform us formally before our production and confirm the design firstly based on our sample.
If you have your own name plate, please send to us.
A:Do you offer guarantee for the products?
Q: Yes, we offer 12 months warranty to our products.
A:What color available?
Q:Colour is optional,please contact us if you have other color request.
A:Are you direct manufacturer?
Q:Yes, we are direct manufacturer with factory and international department,we manufacture and sell all our products by ourselves since 1986.
A:How can i know more detail about you product?
Q: Welcome to inquire us!
A:How long can l get the feedback after we sent the inquiry?
Q: We will reply you within 12 hours in working day.
A:How to solve the equipment trouble during the using?
Q:Please send us email of the problem, pictures or a small video, we will find the problem and help you to solve it.
A:Do you provide samples? Is it free?
Q:Yes, but considering the high value of our products, so the sample is not free.
Q:Does the vacuum pump support long-term continuous operation?
A:Yes,it can work constantly
Q:Can the vacuum pump operate without oil?
A:Yes,it is oil-free
Q:How long is the warranty period
A: 1 YEAR
