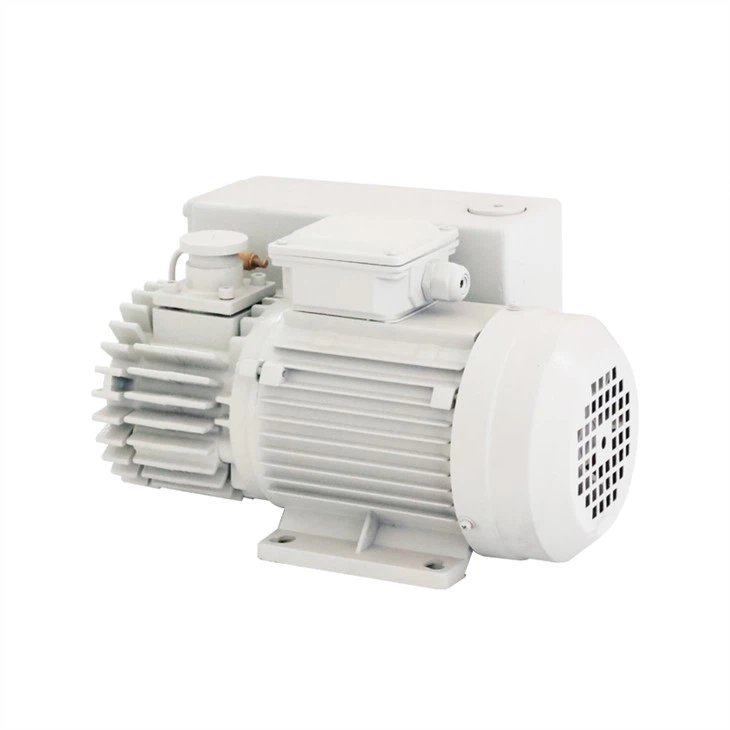

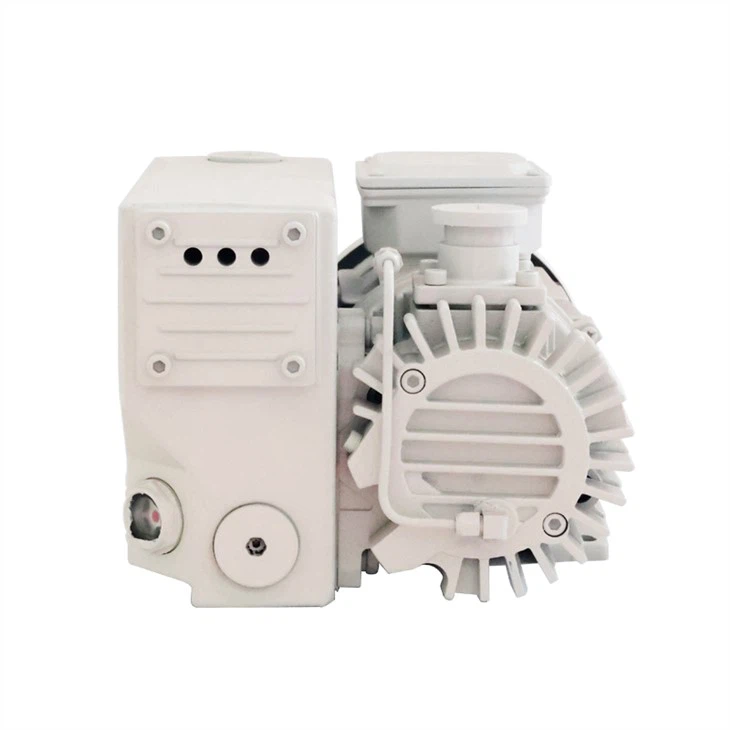

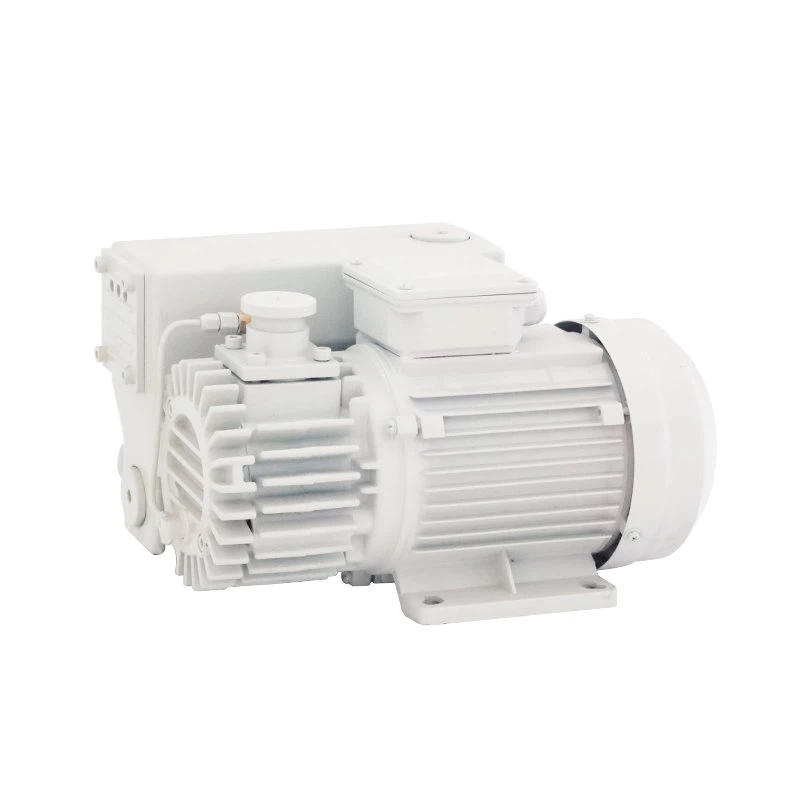

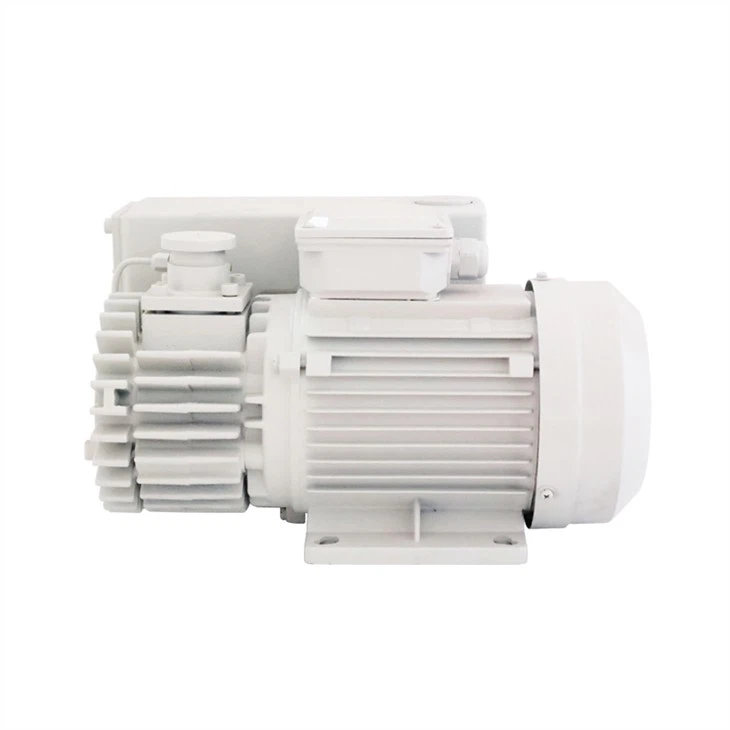

Mini Single Stage Vacuum Pump

Place of Origin: Zhejiang, China (Mainland)
Brand Name: TSVP
Application: air exhaust of refrigeration equipment,vacuum packing,vacuum forming...
Fuel: vacuum pump oil
Color: White
Packaging Details: Carton or Pallet
Port: Ningbo

Ultimate total pressure:150Pa

Power Source:Electric



This Mini Single Stage Vacuum Pump is widely used in various industries, applicable to medium and low vacuum fields, mainly used to extract dry gases such as air. It can be used alone or applied in the production line to pressurize the fluid. Although it has only one impeller and diffuser, it has the characteristics of high cost performance, strong technical reliability and long service life. It can not only ensure stable and effective use, but also avoid maintenance and reduce the cost of use.



Presentation

SV series is a type of typical oil-sealed rotary vane vacuum pump. The working principle is to utilize the oilsealing gap and lubricate the rotating blades to dissipate the heat generated during compression. The oiland the exhaled gas are separated by the exhaust filter. After pumping gases and vapors, it can evacuatethe container or the vacuum system to a medium vacuumSV series single-stage rotary vane pump, with its high pumping speed, stable vacuum degree, low noiseand high durability, has become the ideal choice for medium and low vacuum applications. It is widely usedfor extracting air and other dry, non-toxic, non-corrosive and non-explosive gases.


Features

This Mini Single Stage Vacuum Pump is mainly used for vacuum defoaming, vacuum packaging, vacuum loading and other applications, which has high vacuum efficiency and is convenient to move and carry because of its compact body. At the same time, it can greatly reduce processing time and improve efficiency, and has a high response speed. In addition, it is equipped with oil-free vacuum exhaust port, which provides a clean vacuum environment and will not pollute the system.



Model		SV10B	SV16B	SV20B	SV25B
Pump speed (m3/h)	50HZ	10	16	20	25
	60HZ	12	19.2	24	30
Ultimate vacuum	(Pa)	150		100
Motor Power	(KW)	0.75		0.9
Inlet Diam	(inch)	G1/2			G3/4
Rotary speed	(rpm)	2800
Oil Capacity	(L)	0.3	0.3	0.5	0.5
G.W	(kg)	18	18	20	20
Noise	dB (A)	69	69	64	64
Dimensions	(mm)	328*228*212	328*228*212	335*232*243	341*232*243

Q1: Do you offer guarantee for the products?
A1: yes, we offer 12 months warranty to our products.

Q2: What color available?
A2: Colour is optional,please contact us if you have other color request.

Q3: How long can I get the feedback after we sent the inquiry?
A3: We will reply you within 12 hours in working day.

Q: How to handle the order?
A: 1. Please inform us of your requirements or application (soas to determine which model you need).
2. We will offer a quote based on your requirements or our suggestions
3.The customer confirms and makes the full payment to complete the formal order.
4. We arrange production and shipment.
Q: How long is the delivery period?
A: Since we are a factory with a large warehouse, we have sufficient inventory. We can ship within 15-20 working daysafter receiving the full payment (we have regular modelproduct inventory, such as 2ZX-2/4, DVP2pro/4pro... Pleaseconfirm with us if there is any demand).
Q: How is the payment method?
A: Usually, we use wire transfer. Full payment is paid after theorder is signed.
Q: Can my logo be used on the product?
A: Yes, please inform us formally before production and confirm the design according to our samples. If you have your
own brand name, please send it to us.
Q: What colors are available for selection?
A: Color is optional,OQ is 10 sets. Please contact us if youhave any other color requirements.
Q: Are you a factory manufacturer?
A: Yes, we are a factory manufacturer with a factory and an international department. Since 1988, we have self-produced
and sold all products.
Q: How long will it take for us to receive feedback after sendingan inquiry?
