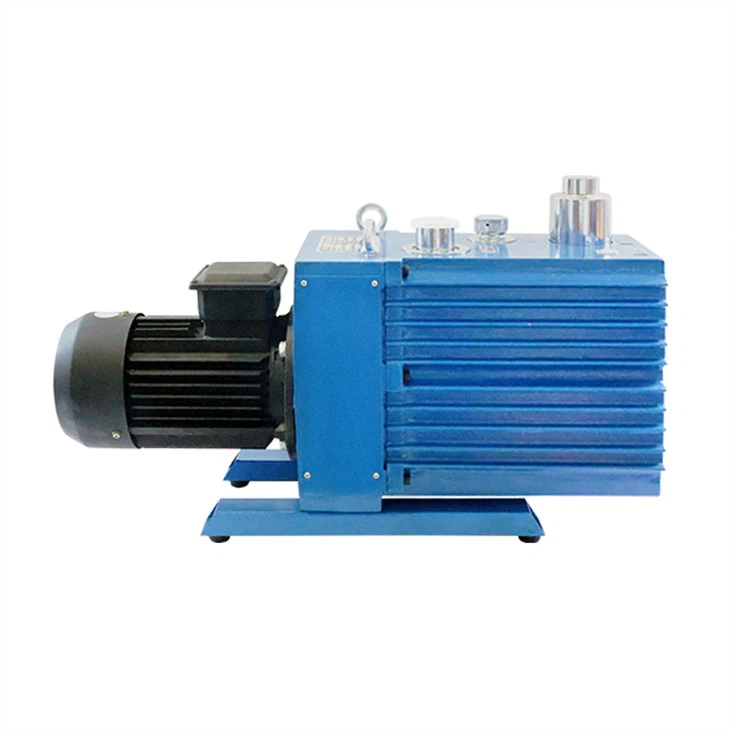

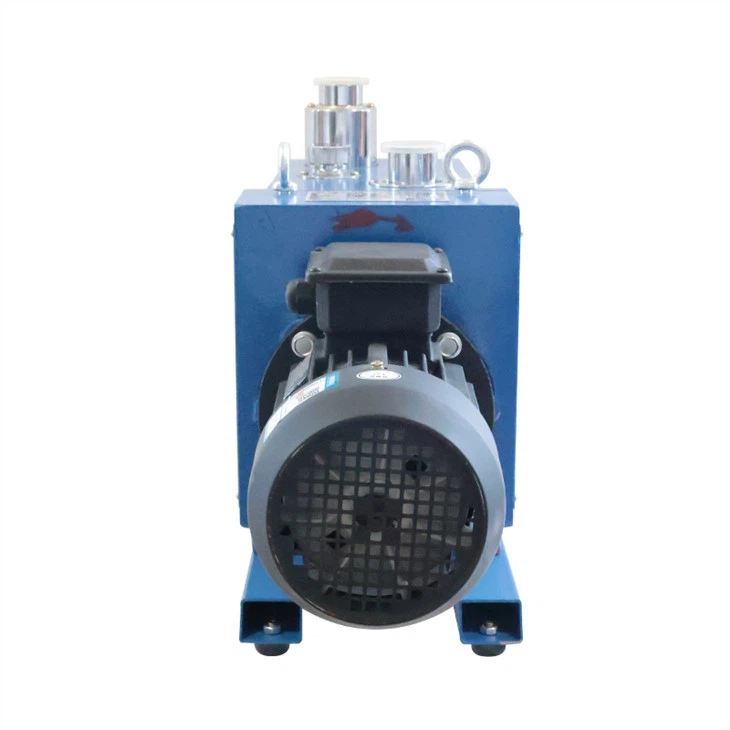

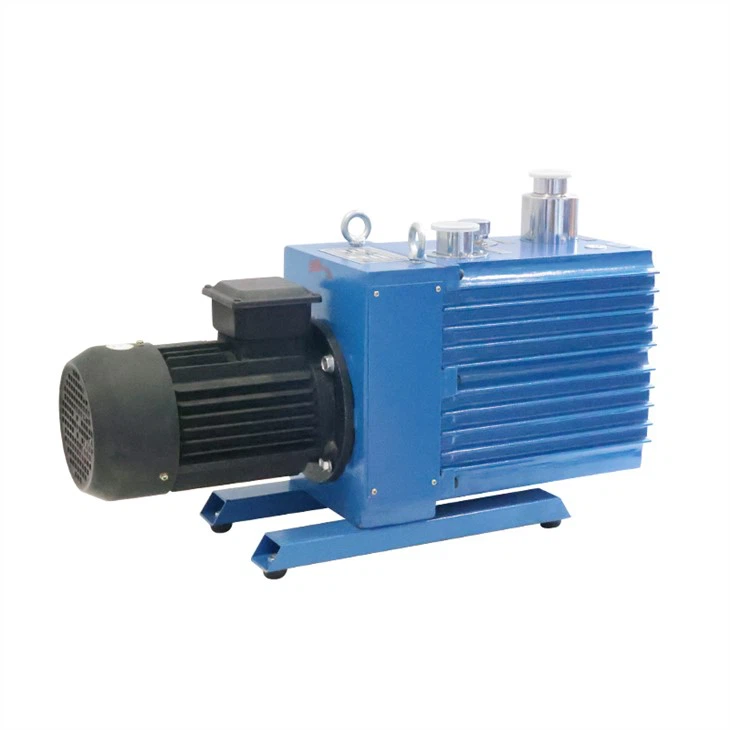

Oil Sealed Ac Vacuum Pump



This Oil Sealed Ac Vacuum Pump is a vacuum pump that uses oil to maintain the sealing of moving parts and pump air by changing the volume of pump chamber, which can mechanically increase and reduce the pumping air. It is equipped with an automatic anti-suction valve, which can protect your system from the influence of oil and oil vapor when the power supply is suddenly turned off, so that the service life is longer and the vacuum degree is better. Moreover, it is equipped with adjustable gas ballast, which can meet different steam emission requirements, making it suitable for use with production lines.

Presentation

2XZ series is the oil rotary vsne vacuum pump.it is used for pumping the gas from a certain container,itcan be usedalone, or as the backing pump of the other kinds of pumps, such as booster pump, difusion pump, molecular pumpetc.

Features

This Oil Sealed Ac Vacuum Pump has a wide range of applications and can be used in all fields of vacuum engineering, including industrial production and research applications. It is popular because of its reliability, low cost and mature technology, can achieve higher compression ratio and better internal cooling performance, and has reliable use characteristics. In addition, when it is used, it will expose the gas to oil, and use oil as lubricant to achieve lower limit pressure, so as to effectively improve the efficiency of vacuum.



Our service

In the course of development in the new century, our company will continue to follow the principle of good faith and provide customers with efficient, safe and first-class Oil Sealed Ac Vacuum Pump and perfect services to enhance corporate image and competitiveness. We believe we can satisfy with you. Under the conditions of economic globalization, we pay more attention to the formulation and application of technological strategies. We always take into account the interests of our stakeholders, continuously enhance value creation, continuously build green industries, and firmly promote social harmony.





Working Principle

Model		2XZ-0.5	2XZ-1	2XZ-2(C)	2XZ-4(C)	2XZ-6C	2XZ-8C	2XZ-15C	2XZ-25C
Pumping speed(L/s)		0.5	1	2	4	6	8	15	25
Ultimate Pressure (Pa)	Partial pressure	≤6×10-2	≤6×10-2	≤6×10-2	≤6×10-2	≤6×10-2	≤6×10-2	≤6×10-2	≤6×10-2
	Total pressure	≤1.33	≤1.33	≤1.33	≤1.33	≤1.33	≤1.33	≤1.33	≤1.33
Rotary speed(r/min)		1400	1400	1400	1400	1400	1400	1400	1400
Rated Power(kw)		0.18	0.25	0.37	0.55	1.1	1.1	1.5	3
Power Supply		220/380	220/380	220/380	220/380	220/380	380	380	380
Connector		φ20(KF-16)	φ20(KF-16)	φ30(KF-25)	φ30(KF-25)	KF-25	KF-40	KF-40	KF-50
Noise level(db a)		65	65	66	68	68	70	70	72
Oil capacity(L)		0.6	0.7	1	1.2	2	5	5	5
Dimensions(mm)		447×168×260	469×168×260	514×168×282	565×168×282	565x200x342	650x240x430	700x240x430	770x240x430
G.W./N.W.(kg)		17/16	18/17	22/20	24/22	55/48	75/60	86/75	98/85



Q1: Is it OK to use my logo on product?
A1: Yes,please inform us formally before our production and confirm the design firstly based on our sample.
If you have your own name plate, please send to us.

Q2: Do you offer guarantee for the products?
A2: yes, we offer 12 months warranty to our products.

Q3: What color available?
A3: Colour is optional,please contact us if you have other color request.

Q: How to handle the order?
A: 1. Please inform us of your requirements or application (soas to determine which model you need).
2. We will offer a quote based on your requirements or our suggestions
3.The customer confirms and makes the full payment to complete the formal order.
4. We arrange production and shipment.
Q: How long is the delivery period?
A: Since we are a factory with a large warehouse, we have sufficient inventory. We can ship within 15-20 working daysafter receiving the full payment (we have regular modelproduct inventory, such as 2ZX-2/4, DVP2pro/4pro... Pleaseconfirm with us if there is any demand).
Q: How is the payment method?
A: Usually, we use wire transfer. Full payment is paid after theorder is signed.
Q: Can my logo be used on the product?
A: Yes, please inform us formally before production and confirm the design according to our samples. If you have your
own brand name, please send it to us.
Q: Are you a factory manufacturer?
A: Yes, we are a factory manufacturer with a factory and an international department. Since 1988, we have self-produced
and sold all products.
Q: How long will it take for us to receive feedback after sendingan inquiry?
A: I will reply to you within 12 hours on working days.
Q: How to solve equipment failure during use?
A: Please send us an email, picture or a short video of the problem. We will find the problem and help you solve it.
Q: Do you provide samples? Are they free?
A: Yes, but considering the high value of our products, samplesare not free.
