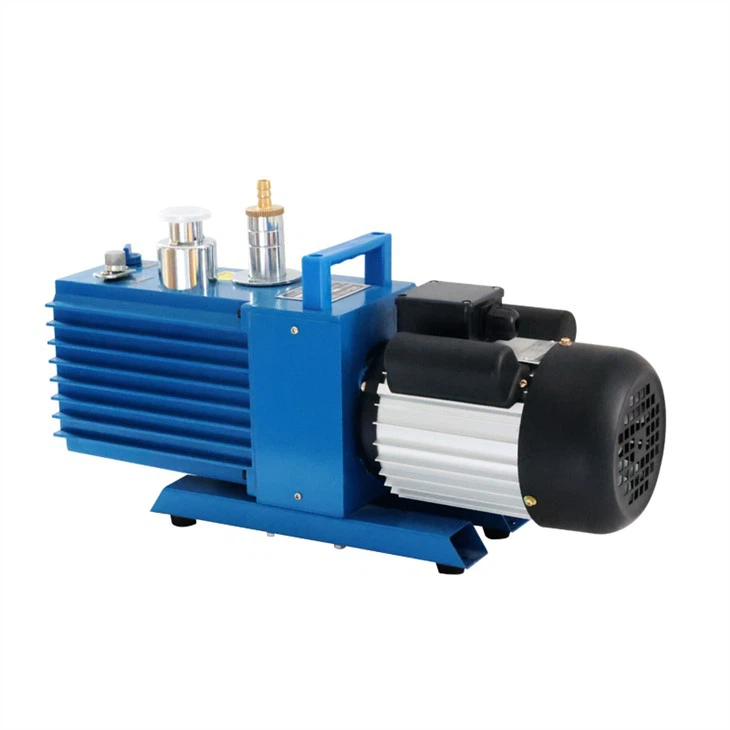

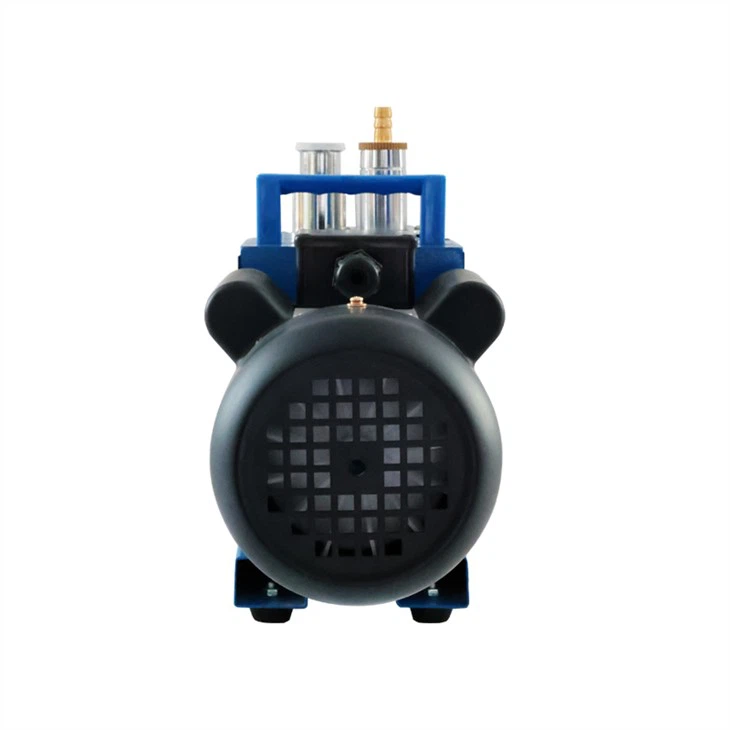

Protable Oil Air Suction Pump
Motor:0.55KW
Pumping Speed(50Hz):4 L/S
Product Information
The protable oil air suction pump has the advantages of compact structure, convenient operation, portable,stable operation, easy maintenance, high efficiency, long service life, and strong self-priming ability. It does not need to install a bottom valve, and only needs to ensure that there is a fixed amount of liquid in the pump body before working.
Presentation
2XZ series is the oil rotary vsne vacuum pump.it is used for pumping the gas from a certain container,itcan be usedalone, or as the backing pump of the other kinds of pumps, such as booster pump, difusion pump, molecular pumpetc.
Features
Compared with other types of self-priming centrifugal pump, because protable oil air suction pump has no check valve and its structure is simple, it has a long working time and is easy to maintain and use. The vacuum pump is small in size, light in weight, high in efficiency, and has been specially considered in design. Compared with the pump with the same caliber, it has large displacement and high performance.
Factory advantages
Our manufacturing facility spans over 7,564 square feet, providing a robust foundation for high-volume production. With the capacity to ship over 2,000 units monthly, we ensure timely delivery without compromising on quality. We stand behind our products with a comprehensive 1-year warranty and a portfolio of over 30 patents, reflecting our commitment to innovation. Furthermore, our streamlined processes guarantee a rapid turnaround, with all orders fulfilled within 15 days.
Quick Detail:
Place of Origin: Zhejiang, China (Mainland)
Brand Name: TSVP
Application: air exhaust of refrigeration equipment,vacuum packing,vacuum forming...
Fuel: vacuum pump oil
Color: Optional
Packaging Details: Carton or Pallet
Port: Ningbo
Material:Steel
Product Introduction：
● Equipped with oil anti-return device.
● Equipped with small caliber transforming joints and KF joints.
Working Principle
Technical Data
|
Model |
2XZ-0.5 |
2XZ-1 |
2XZ-2(C) |
2XZ-4(C) |
2XZ-6C |
2XZ-8C |
2XZ-15C |
2XZ-25C |
|
|
Pumping speed(L/s) |
0.5 |
1 |
2 |
4 |
6 |
8 |
15 |
25 |
|
|
Ultimate Pressure |
Partial |
≤6×10-2 |
≤6×10-2 |
≤6×10-2 |
≤6×10-2 |
≤6×10-2 |
≤6×10-2 |
≤6×10-2 |
≤6×10-2 |
|
Total |
≤1.33 |
≤1.33 |
≤1.33 |
≤1.33 |
≤1.33 |
≤1.33 |
≤1.33 |
≤1.33 |
|
|
Rotary speed(r/min) |
1400 |
1400 |
1400 |
1400 |
1400 |
1400 |
1400 |
1400 |
|
|
Rated Power(kw) |
0.18 |
0.25 |
0.37 |
0.55 |
1.1 |
1.1 |
1.5 |
3 |
|
|
Power Supply |
220/380 |
220/380 |
220/380 |
220/380 |
220/380 |
380 |
380 |
380 |
|
|
Connector |
φ20(KF-16) |
φ20(KF-16) |
φ30(KF-25) |
φ30(KF-25) |
KF-25 |
KF-40 |
KF-40 |
KF-50 |
|
|
Noise level(db a) |
65 |
65 |
66 |
68 |
68 |
70 |
70 |
72 |
|
|
Oil capacity(L) |
0.6 |
0.7 |
1 |
1.2 |
2 |
5 |
5 |
5 |
|
|
Dimensions(mm) |
447×168×260 |
469×168×260 |
514×168×282 |
565×168×282 |
565x200x342 |
650x240x430 |
700x240x430 |
770x240x430 |
|
|
G.W./N.W.(kg) |
17/16 |
18/17 |
22/20 |
24/22 |
55/48 |
75/60 |
86/75 |
98/85 |
|
Application
Shipping
AIR
SEA
EXPRESS
Packing
Carton or wooden case
FAQ
Q1: How about the payment term?
A1: Usually by T/T,L/C.30%deposit after order,the balance will be paid at the sight of B/L
Q2: Are you direct manufacturer?
A2: Yes, we are direct manufacturer with factory and international department,we manufacture and sell all our products by ourselves since 1986.
Q3: How can i know more detail about you product?
A3: Welcome to inquire us!
Q: How to handle the order?
A: 1. Please inform us of your requirements or application (soas to determine which model you need).
2. We will offer a quote based on your requirements or our suggestions
3.The customer confirms and makes the full payment to complete the formal order.
4. We arrange production and shipment.
Q: How long is the delivery period?
A: Since we are a factory with a large warehouse, we have sufficient inventory. We can ship within 15-20 working daysafter receiving the full payment (we have regular modelproduct inventory, such as 2ZX-2/4, DVP2pro/4pro... Pleaseconfirm with us if there is any demand).
Q: How is the payment method?
A: Usually, we use wire transfer. Full payment is paid after theorder is signed.
Q: Can my logo be used on the product?
A: Yes, please inform us formally before production and confirm the design according to our samples. If you have your
own brand name, please send it to us.
Q: What colors are available for selection?
A: Color is optional,OQ is 10 sets. Please contact us if youhave any other color requirements.
Q: Are you a factory manufacturer?
A: Yes, we are a factory manufacturer with a factory and an international department. Since 1988, we have self-produced
and sold all products.
Q: How long will it take for us to receive feedback after sendingan inquiry?
A: I will reply to you within 12 hours on working days.
Q: How to solve equipment failure during use?
A: Please send us an email, picture or a short video of the problem. We will find the problem and help you solve it.
