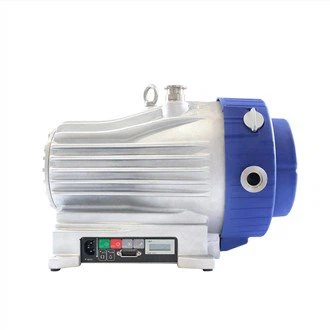

Small Protable Scroll Vacuum Pump
Motor:0.55 KW
Pumping Speed:10 m³/h
Product Information
The main moving part of the small protable scroll vacuum pump is only a moving scroll plate. Therefore, it has simple power transmission, small motion radius, few components and simple and compact structure under the same size. The whole machine is small in size, and the clearance between the moving and static scroll plates, the moving plate and the pump cavity is small. There is no friction between the moving parts in the pump and the pump cavity, so there is almost no wear, and the operation is stable.
The small protable scroll vacuum pump has low power consumption, small gas flow loss, high working reliability, long service life, easy maintenance and high volumetric efficiency. The pump is air cooled without water cooling. The vacuum pump has a high compression ratio and a stable pumping speed in a wide pressure range. Because the change of the volume of the compression chamber is continuous, the drive torque changes little, the power changes little, and the vibration noise is low, which is not available in other types of dry vacuum pump.
Presentation
SP series is a type of dry vacuum pump. Referring to the working principle of the scroll compressor, therare two Archimedes spiral lines in each pump. By reducing the volume of the groove and compressing the gas from the outside to inside, a vacuum is generated.
Quick Detail:
Place of Origin: Zhejiang, China (Mainland)
Brand Name: TSVP
Color: Optional
Packaging Details: Carton or Pallet
Port: Ningbo
Cable Length:2m
Surface Treatment:Spraying
Discharge Pipe Size:1-1/2 in
Our advantages
● We are a innovation-driven company, we have 14 patents every year there will beat least one patent coming out since we have devoted ourselves to develop our products.
● We are willing to develop all new material only if it's required in application.
● All our technology innovation only for one aim--- the best quality, even that means a higher cost and lower production rate.
Technical Data
|
Model |
SPH10 |
SPH15 |
SPH20 |
SPL10 |
SPL15 |
SPL20 |
|
Pumping Speed (m³/h) |
10 m³/h (6.7cfm) |
15 m³/h (8.9cfm) |
20 m³/h (13cfm) |
10 m³/h (6.7cfm) |
15 m³/h (8.9cfm) |
20 m³/h (13cfm) |
|
Ultimate Pressure (mbar) |
2 pa/0.02mbar |
1 pa/0.01mbar |
≤30 pa/0.3mbar |
≤20 pa/0.2mbar |
||
|
Rotary Speed(rpm) |
1800 rpm |
1500 rpm |
||||
|
Connector |
KF25 |
KF25 |
||||
|
Power Supply (w) |
550W |
750W |
550W |
750W |
||
|
Rated Power(v) |
100-240V/50-60HZ |
100-240V/50-60HZ |
||||
|
Dimensions (mm) |
442*278*308 mm |
442*278*308 mm |
||||
|
Weight (kg) |
25.2 kg |
25.6 kg |
25.8 kg |
25.2 kg |
25.6 kg |
25.8 kg |
|
Vapour Pumping Ability(g/h) |
145 |
220 |
160 |
250 |
||
|
Noise Level(dbA) |
56 dbA |
|||||
|
Cooling Method |
Air cooled |
|||||
|
Working Temperature |
5-45℃(41-113℉) |
|||||
Capacity
The small protable scroll vacuum pump can make various kinds of colors of the cover. Just let us know the PANTONE color code or YKK color code,we will our best try to achieve your requirement.
Application
Payment terms
● Payment: All the payment can negotiate, generally by T/T or L/C.
● Delivery:20-25 days after receipt of your payment, then we ship the cement brick making machine from our factory to your delivery port.
● Service: 24 hours online service, technical overseas service
Quality Control
We have QC person stay on the production lines do to the inspection.All products must have been inspected before delivery.we do inline inspection and final inspection.
1.All raw material checked once it arrive our factory.
2.All pieces and logo and all details checked during production.
3.All packing details checked during production.
4.All production quality and packing checked on final inspection after finished.
FAQ
Q1. What is your terms of packing?
A: Large machines need to load into container transport, small machines need to LCL Suitable for sea transport.
Q2. How about your delivery time?
A: Generally, we wil Shipped in 20 days after payment
Q3. What is your sample policy?
A: I'm very sorry but our company does not provide free samples
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
FAQ:
Q: How to handle the order?
A: 1. Please inform us of your requirements or application (soas to determine which model you need).
2. We will offer a quote based on your requirements or our suggestions
3.The customer confirms and makes the full payment to complete the formal order.
4. We arrange production and shipment.
Q: How is the payment method?
A: Usually, we use wire transfer. Full payment is paid after theorder is signed.
Q: Can my logo be used on the product?
A: Yes, please inform us formally before production and confirm the design according to our samples. If you have your
own brand name, please send it to us.
Q: What colors are available for selection?
A: Color is optional,OQ is 10 sets. Please contact us if youhave any other color requirements.
Q: Are you a factory manufacturer?
A: Yes, we are a factory manufacturer with a factory and an international department. Since 1988, we have self-produced
and sold all products.
Q: How long will it take for us to receive feedback after sendingan inquiry?
A: I will reply to you within 12 hours on working days.
Q: How to solve equipment failure during use?
A: Please send us an email, picture or a short video of the problem. We will find the problem and help you solve it.
Q: Do you provide samples? Are they free?
A: Yes, but considering the high value of our products, samplesare not free.
